#02 Construction of the ‘Suzuka 8hours’machine

  • 掲載日/2010年07月22日【Suzuka 8hours Endurance Challenge Blog】
  • Text & Photo / Masanao NITTA (Tras) Japanese >>
S1000RR鈴鹿8耐参戦記の画像

Go for it ‘Team Tras’!

In 2008 the Tras team challenged successfully the Motegi 7h Endurance race with the HP2 Sport. In 2009 the team faced a new challenge: The Motegi Race with the HP2 Megamoto. While ranking 1st for a while an engine trouble forced the team to retire from the race. Then in 2010 the Tras team has returned to the Suzuka 8h Endurance Race, where they fought many past challenges with BMW motorcycles.

Can we build the machine in time?
Construction ‘Behind the Scenes’

So, where to start?
Before challenging the 8hours challenge, the team needs to compete in the Suzuka 300km road race. It’s set for June 13th… Only one month left!

Talking of building the race machine; the first priority is the gasoline tank for a content of exactly 24l as indicated by the race regulation. Time to contact ‘Beater’!

Nitta:“Nakahara-san. We are participating in the Suzuka 8hours race!”
Nakahara:“Well, that is very soon! You usually work a tight schedule, but this is sudden! What bike are you planning to use?”
Nitta:“S1000RR, we already registered for the 300km road race on June 13th.”
Nakahara:“Impossible! That is really not enough time! We need at least 3 months for this.”
Nitta:“I will bring the bike anyway ? next week.”
Nakahara:“…”

When you build parts for a bike, it is unquestionable: Without a bike at hand, you cannot build anything at all. I often get this demand: “Please build a carbon part from this sample.” Approaching the creation of a part in that fashion only generates problems. You need the original bike, need to set up the parts and check whether it fits. There is either that or the option of creating drawings based on reliable data. There is no third choice.

When you use a pre-existing FRP cowl part and create a mould for the carbon part thereof, it is well possible that it will not fit. Why not? FRP is light and strong and follows form to a certain degree. However if a prepreg carbon part protrudes even just a millimetre, the part will not interconnect nicely with its counterpart and it will be impossible to fit the cowl together. This is because carbon is so ‘light, hard and strong’! Excuse me using an example from another company, but there have been cases, where carbon fenders have even cut up tires. That is how strong carbon is.

Once I start elaborating on carbon I will easily need 20 pages, so let’s leave it at that for now.

S1000RR鈴鹿8耐参戦記の画像
To create the cowling of two bikes all these models and moulds are necessary. Including all moulds, these are more than 60 parts! As all parts are manufactured by hand, of course normal working hours need to be extended. More and more members of the staff are feeling a lack of sleep.

I get on the S1000RR and ride to ‘Beater’, which is close to the Gotemba interchange. Nakahara-san is also a rider. In his free time he enjoys riding his Ducati 1098R. Even though he is at work, his ears are sensitive to the sound of a bike. He looks up.

Nakahara:“Wow! That bike looks even better than in the magazines! Get that engine roaring please!”

Wroom, wroom, wroooooom!

Nakahara:“And it sounds great too! It is somehow inspiring! That little 16,5l tank is really a pity on that bike. Shouldn’t we be selling this as a 24l version with a normal filler cap?”

Nitta: “Great idea! After we test it at Suzuka 8hours, ‘Beater’ should sell the 24l tank!”

Shokunin Nakahara had managed to build the 24l version of the S1000RR tank in triple speed, besides dealing with his daily business! Thanks to this aluminium tank-shokunin we raced the Suzuka 300km road race with a 24l tank!

S1000RR鈴鹿8耐参戦記の画像
The brand new sparkling aluminium tank is fascinatingly extending its aura in its new place.

Here is where the problems start!
The bike is at ‘Beater’ for the fitting of the custom tank. At Tras all there is left are the FRP cowling parts. This is bad! At this rate there is a high probability of not being able to fit the parts, once the bike is back. Worst case: We cannot assemble it anymore. But there is no time to wait for the bike. We got to get started anyway.

At Tras, Nitta and the staff immerse themselves from dawn till dusk into the project, working overtime and giving up their weekends.

Staff:“Shouldn’t we additionally reinforce the frame with carbon parts? Carbon air ducts would also be cooler. And maybe we can reinforce the swing arm with carbon?”

Nitta:“What!? Do you think you can manage all that in the little time available?”

Staff: “We just got to, right?”

What a miracle! Thanks to my forward looking staff we made it on time! The S1000RR Tras Special is ready for a test ride in Suzuka!

S1000RR鈴鹿8耐参戦記の画像
The cowling painted in Tras Yellow all fit together. The colouring is based on a famous sports car, so it’s a perfect fit! Under UV light is sparkles in wonderful pearl colours.
S1000RR鈴鹿8耐参戦記の画像
S1000RR鈴鹿8耐参戦記の画像
The tank looks big, but the riders positioning on the bike actually improves with this 24l tank. It is on sale at ‘Beater’.
S1000RR鈴鹿8耐参戦記の画像
S1000RR鈴鹿8耐参戦記の画像
S1000RR鈴鹿8耐参戦記の画像
The abandoned front cowl. (As this is used as a mould for the master, it cannot be used to produce parts.)
S1000RR鈴鹿8耐参戦記の画像
S1000RR鈴鹿8耐参戦記の画像
To create a carbon mould, we first go and produce a model. Detailed edges and sharp lines are perfected with putty and surfacer. Normally this would be done set on the machine, but as the machine is at ‘Beater’…
S1000RR鈴鹿8耐参戦記の画像
Apparently the overworked staff transformed into riders at nighttimes.
S1000RR鈴鹿8耐参戦記の画像
S1000RR鈴鹿8耐参戦記の画像
S1000RR鈴鹿8耐参戦記の画像
S1000RR鈴鹿8耐参戦記の画像
To determine the seat position a model based on rider Toda is created.
S1000RR鈴鹿8耐参戦記の画像
First the upper and center cowls are completed. The picture shows the fierceness of the carbon material!
S1000RR鈴鹿8耐参戦記の画像
The screen is Tras made too. Given a clear paint, the whole body is reviewed.
S1000RR鈴鹿8耐参戦記の画像
Two sets of parts. What an amount of bits and pieces!
S1000RR鈴鹿8耐参戦記の画像
The whole bike is done! Even the start numbers are painted on!
S1000RR鈴鹿8耐参戦記の画像
PIAAs HID light is essential for the Suzuka 8tai!
S1000RR鈴鹿8耐参戦記の画像

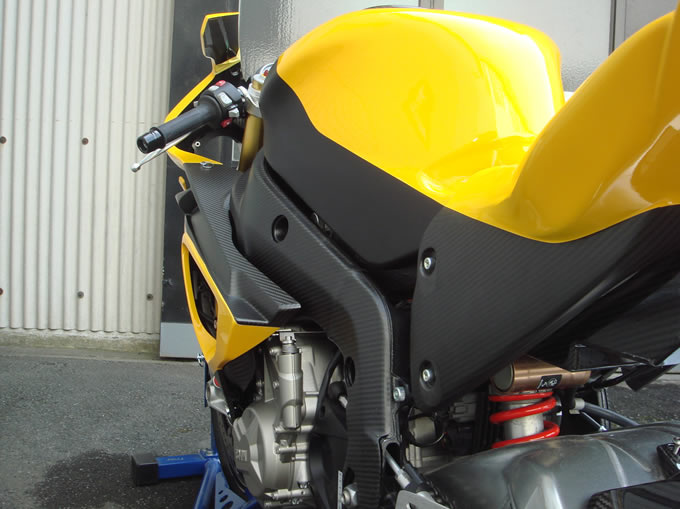

Carbon frame reinforcement.
S1000RR鈴鹿8耐参戦記の画像
Nothing excels BMWs design. As I believe this, I based the design on the normal version.
S1000RR鈴鹿8耐参戦記の画像
The engine cover is attached with a special adhesive, taking advantage of the thermal conductivity of the material.
S1000RR鈴鹿8耐参戦記の画像
The seat rail has a weight of 850g. Using a carbon seat rail can reduce the weight.
S1000RR鈴鹿8耐参戦記の画像
An also lighter Akrapovic racing muffler. Like the CPU these specialized race parts are available on the market.
S1000RR鈴鹿8耐参戦記の画像
The bike ready for the Suzuka 300km test ride. Normal muffler, and under cowl attached. The 24l tank as well. Attach a light and you could go for normal roads!
S1000RR鈴鹿8耐参戦記の画像

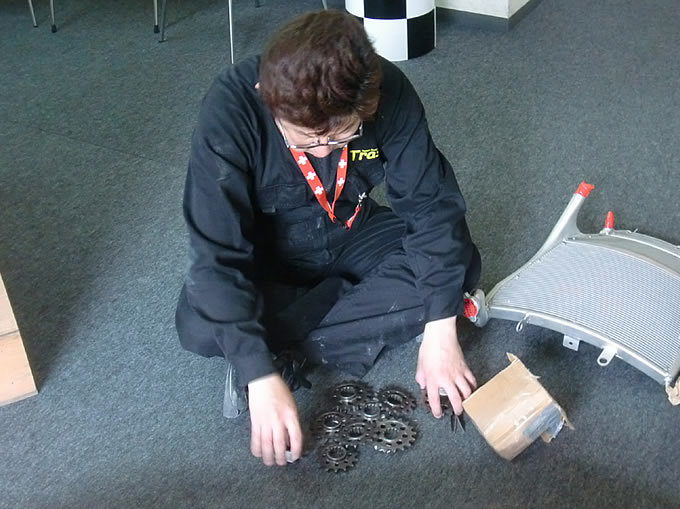

The radiator Muto-san ordered from Germany has arrived. But… Where is the mounting case?
Challenger
Masanao Nitta
President of Tras Masanao Nitta develops, designs and sells prepreg carbon parts. He guides his group of Carbon Shokunin with an always-playful heart and is always ready for new challenges. Getting the best out of the carbon ‘material of dreams’, Tras develops high quality parts at world-class level. As a BMW owner himself he rides a R100 Roadster, R1200RT and a HP2 Megamoto (Motegi Version). As part of new challenges and to improve its technical capabilities, Tras continues to challenge races like the Suzuka 8hours in 2006 and Motegi 7hours in 2008. Every year Tras not only develops new cowl parts for racing bikes, but also challenges new value adding projects.
